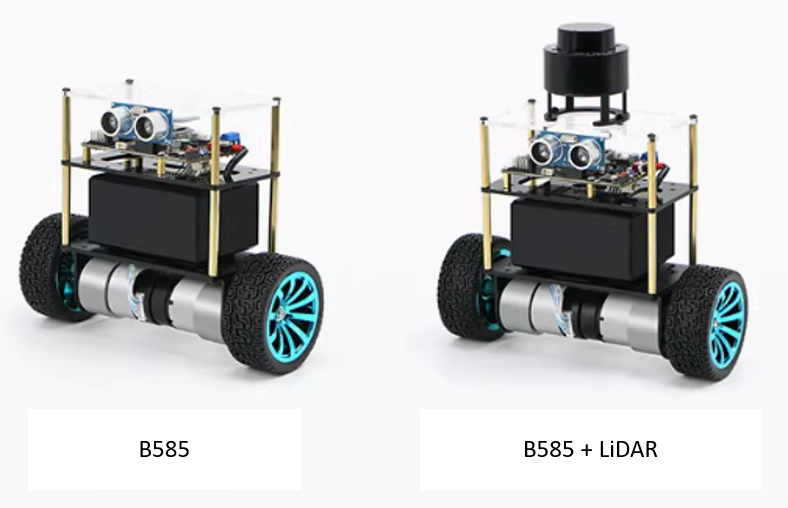

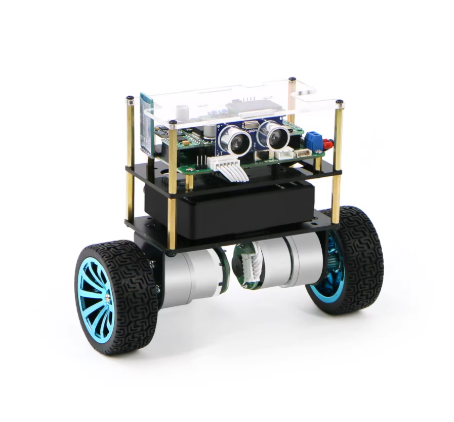

Self-Balancing Car-B585
Self-Balancing Car-B585
Product Overview
The Advanced Self-Balancing Research Platform is a high-performance, industrial-grade robot designed for developers, educators, and robotics enthusiasts. Bridging the gap between theory and practice, this platform features an intelligent pickup-and-placement detection system that automatically manages motor activation for a seamless "set and go" experience.
Built on a robust metal chassis with high-torque motors capable of a 4kg payload, it serves as an ideal foundation for complex DIY projects. Whether you are mastering classic PID control or diving into modern LQR state-space algorithms, this robot provides a fully open-source environment with multiple sensor fusion options (DMP, Kalman, and Complementary filtering) to ensure rock-solid stability in any scenario.
|
Model |
B585 Self-Balancing Car |
|
Motor Encoder |
500-line High-Precision GMR Encoder |
|
Battery |
12.6V 5100 mAh Battery |
|
Main Control Chip |
STM32F103RCT6 |
|
CCD Line Following |
Supported |
|
Electromagnetic Line Following |
Supported |

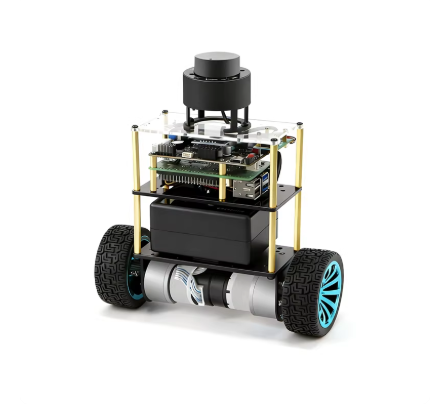

LiDAR Specification
|
Specification |
N10P |
|
Detection Radius |
25m |
|
Scanning Frequency |
6 ~ 12Hz (Adjustable) |
|
Sampling Rate |
5400Hz |
|
Output Data |
Angle, Distance, Intensity |
|
Angular Resolution |
0.4° ~ 0.8° (Adjustable) |
|
Ambient Light Resistance |
60KLux (Outdoor use supported) |
|
Interface Type |
Serial Port |
|
Drive Motor Type |
Brushless Motor |
|
360°Scanning Range |
○ |
|
LiDAR Principle |
TOF (Time of Flight) |
Raspberry Pi5 Development Board Specification
|
Specification |
Raspberry Pi5 Development Board |
|
CPU |
ARM Cortex-A76 64-bit @ 2.4GHz (Quad-core) |
|
GPU |
VideoCore VII GPU @ 800MHz |
|
Compute Power |
0.8 TOPS (FP16) |
|
Memory |
4GB |
|
USB Ports |
2 × USB 3.0 + 2 × USB 2.0 |
|
Camera Input |
MIPI CSI |
|
Video Output |
Micro-HDMI (2 ports), supports up to 4Kp60 resolution |
|
Video Decoding |
H.265 (4Kp60) |
|
Onboard Storage |
64GB MicroSD Card |
|
Network Interface |
Gigabit Ethernet / WiFi 802.11ac |
|
GPIO Pins |
40 |
|
Rated Power |
25W (5V/5A) |
|
Power Input |
5V |
|
Dimensions |
89 × 58.4 mm |
