Educational Robots with Robotic Arm-R550A
Educational Robots with Robotic Arm-R550A
Product Overview
The R550A is a versatile flagship platform that offers multiple chassis configurations to suit your needs. Equipped with cost-effective LiDAR and depth cameras, it is the perfect tool for mastering SLAM mapping, autonomous navigation, deep learning, 3D vision, and robot swarming.
To ensure a smooth learning curve, we provide comprehensive technical support, making it an ideal choice for both complete beginners and advanced developers looking to level up their skills.
Choose between a 4-DOF or 6-DOF Robotic Arm to suit your application:
-

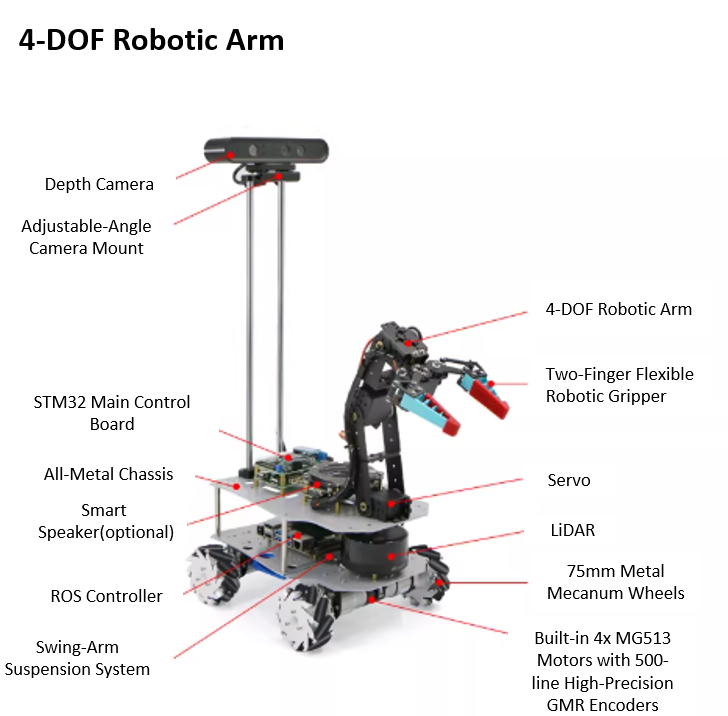

4-DOF Version: In many specific scenarios, 4 degrees of freedom are more than sufficient. This version is simpler to operate while providing an identical learning experience and educational outcome for robotics students.

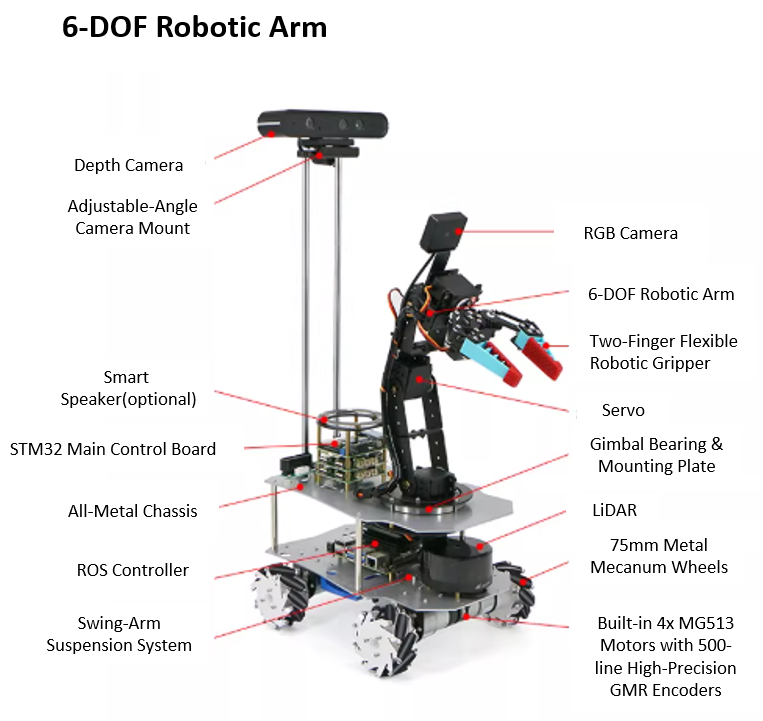

- 6-DOF Version: This upgrade adds a horizontal rotating base and a rotating gripper servo for enhanced dexterity. Because the gripper can occasionally move outside the primary depth camera’s field of view, the 6-DOF version includes an additional RGB camera. This allows for advanced functions such as static object sorting and more complex manipulation tasks.
LiDAR Specification Comparison
|
Specification |
N10P |
M10P |
|
Detection Radius |
25m |
30m |
|
Scanning Frequency |
6 ~ 12Hz (Adjustable) |
12Hz |
|
Sampling Rate |
5400Hz |
20000Hz |
|
Output Data |
Angle, Distance, Intensity |
Angle, Distance |
|
Angular Resolution |
0.4° ~ 0.8° (Adjustable) |
0.22° |
|
Ambient Light Resistance |
60KLux (Outdoor use supported) |
100KLux (Outdoor use supported) |
|
Interface Type |
Serial Port |
|
|
Drive Motor Type |
Brushless Motor |
|
|
360°Scanning Range |
○ |
|
|
LiDAR Principle |
TOF (Time of Flight) |
|
