Balance Cube-B650/B790
Balance Cube-B650/B790
Product Overview
The B650/B790 Balance Cube is a quintessential intelligent control system. It supports single-edge or single-point contact balance, making it an ideal platform for learning automation theory.
|
Specification |
Single-Edge Balance Cube |
Single-Point Balance Cube |
|
Model |
B650 |
B790 |
|
Dimensions |
85 * 75.5 * 120mm |
97 * 97 * 100mm |
|
Weight |
684g |
952g |
|
Shell Material |
CNC Metal |
Full Carbon Fiber |
|
Motor |
1x BM50 Integrated Brushless |
3x BM50 Integrated Brushless |
|
Battery |
12.6V 2550mAh with protection (Supports Pass-through Charging) |
12.6V 2550mAh with protection (Supports Pass-through Charging) |
|
Charger |
3C Certified 12.6V 1A Li-ion Charger |
3C Certified 12.6V 1A Li-ion Charger |
|
Balance Mode |
Single-edge balance; Auto-swing up |
Single-point/edge balance; Remote control support |
|
Endurance |
~19 Hours |
~10 Hours |
|
Main Control Chip |
STM32F103RCT6 |
STM32F103RCT6 |
|
Display |
0.96-inch OLED |
0.96-inch OLED |
|
Bluetooth |
Included |
Included |
|
Download Port |
Type-C Serial; Bluetooth Wireless |
Type-C Serial; Bluetooth Wireless |
|
Buttons |
1 |
1 |
|
Algorithm |
PID / LQR |
PID |
|
Simulink Simulation |
Supported |
N/A (Currently) |
|
Open Source |
Full source code, schematics, online PID tuning, and attitude monitoring |
Full source code, schematics, online PID tuning, and attitude monitoring |
Design & Quality

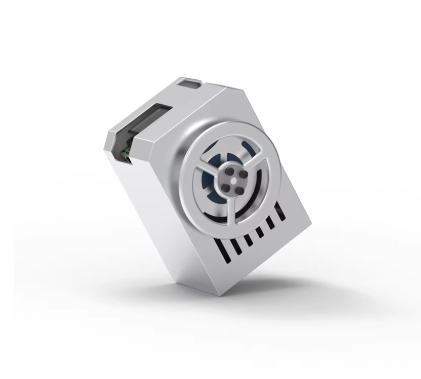

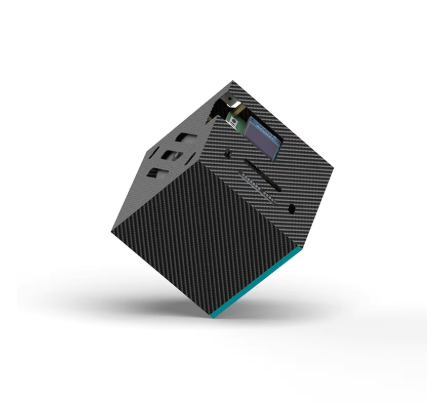

Supports PID/LQR control with fully open-source core code. The B650 features high-precision CNC machining, while the B790 utilizes a full carbon fiber shell for a robust, stable, and exquisite finish. It includes a built-in high-capacity safety battery, source code, and schematics.
Algorithm Differences
B650: Provides LQR control Matlab Simulink simulation models.
B790: Provides PID control source code only.
