Ackermann ROS Robot-R550(AKM)
-
Estimated Delivery:Jun 17 - Jun 21
-
Free Shipping: On all orders over $499
Ackermann ROS Robot-R550(AKM)
Bulk Orders & Customization
Looking for large-scale procurement or bespoke solutions? We offer specialized support for corporate clients and bulk buyers.
Product Overview

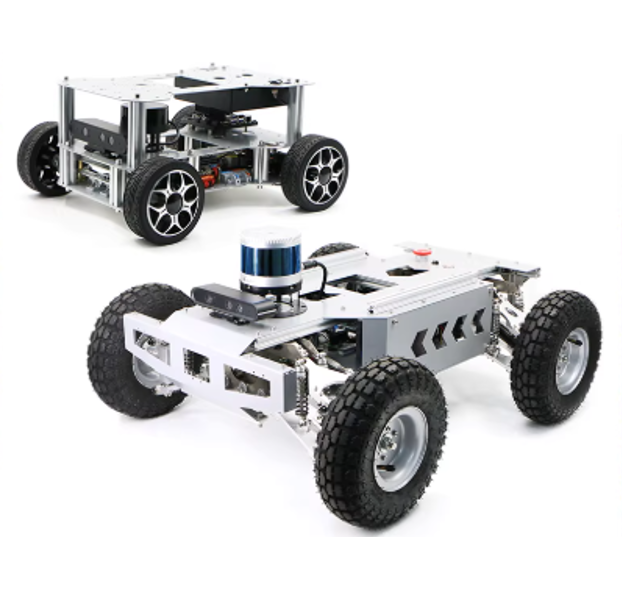

This chassis utilizes the Ackermann steering geometry, the current standard widely adopted in the New Energy Vehicle (NEV) market. We offer multiple configurations with various suspension systems, speed ratings, and payload capacities. Equipped with cost-effective LiDAR and depth cameras, this platform is ideally suited for budget-friendly robotics research and educational applications.
|
Specification) |
PRO(Coaxial Pendulum) |
Ultra(Coaxial Pendulum) |
Ultra(Independent) |
|
Motor Reduction Ratio |
1:27 |
1:18 |
1:18 |
|
Max Speed |
1.3 m/s |
1.65 m/s |
1.65 m/s |
|
Payload |
25 kg |
60 kg |
45 kg |
|
Net Weight |
9.3 kg |
20.0 kg |
35.6 kg |
|
Max Climbing Angle |
27° |
25° |
11° |
|
Obstacle Clearance |
30 mm |
30 mm |
75 mm |
|
Dimensions |
445 * 360 * 206 mm |
774 * 570 * 227 mm |
766 * 671 * 319 mm |
|
Min. Turn Radius |
0.8 m |
1.65 m |
1.78 m |
|
Endurance |
9.5h (No-load) / 8.5h (20% Load) |
4.5h (No-load) / 3h (20% Load) |
|
|
Servo |
S20F 20kg High-Torque Digital |
DS5160 60kg High-Torque Digital |
|
|
Slave/Drive Wheels |
125mm Solid Rubber |
180mm Solid Rubber |
254mm Pneumatic Rubber |
|
Motor |
MD36L 60W Brushed DC |
MD60 100W DC Gear Motor |
|
|
Encoder |
500-line GMR AB-phase High-Precision |
||
|
Suspension |
Coaxial swing-arm (for uneven terrain) |
4-Wheel Independent Suspension Shock Absorption |
|
|
Control |
App (BT/WiFi), Multi-mode Controller, CAN, Serial, USB |
||
Motor Specifications Comparison
|
Specification |
PRO |
Ultra |
|
Model |
MD36L P27 |
MD60 P18 |
|
Voltage |
24V DC |
24V DC |
|
No-load Speed |
310±12% rpm |
330±30 rpm |
|
Rated Speed |
260±12% rpm |
175 rpm |
|
Rated Torque |
10 kg.cm |
55.7 kg.cm |
|
Rated Current |
2.9A (Max) |
6A |
|
Stall Current |
22.1A (Max) |
22A |
|
Controller |
System Image |
|
Raspberry Pi 5 |
ROS1 melodic, ROS2 humble |
|
Jetson Nano (4GB) |
ROS1 melodic, ROS2 galactic |
|
Orin Nano Super (8GB) |
ROS1 noetic, ROS2 humble |
|
Orin NX Super (8GB) |
|
|
Orin NX Super (16GB) |
LiDAR Specification Comparison
|
Specification |
N10P |
M10P |
|
Detection Radius |
25m |
30m |
|
Scanning Frequency |
6 ~ 12Hz (Adjustable) |
12Hz |
|
Sampling Rate |
5400Hz |
20000Hz |
|
Output Data |
Angle, Distance, Intensity |
Angle, Distance |
|
Angular Resolution |
0.4° ~ 0.8° (Adjustable) |
0.22° |
|
Ambient Light Resistance |
60KLux (Outdoor use supported) |
100KLux (Outdoor use supported) |
|
Interface Type |
Serial Port |
|
|
Drive Motor Type |
Brushless Motor |
|
|
360°Scanning Range |
○ |
|
|
LiDAR Principle |
TOF (Time of Flight) |
|
High-Performance Multi-Beam LiDAR for Outdoor Navigation
To accelerate the adoption of multi-beam mechanical LiDAR in low-speed autonomous vehicles, this product offers optional 16-beam and 32-beam LiDAR configurations. Both models utilize Time-of-Flight (TOF) ranging principles and integrate 16 and 32 laser transceiver components respectively.
Key features include:
-
High Precision: Measurement accuracy within ±3cm.
-
Exceptional Data Density: The 32-beam version delivers a massive output of up to 640,000 points per second.
-
Full Coverage: 360°horizontal scanning angle.
These LiDAR units are primarily designed for autonomous vehicle environmental perception, robotic environmental sensing, and UAV mapping/surveying.
