Product Overview

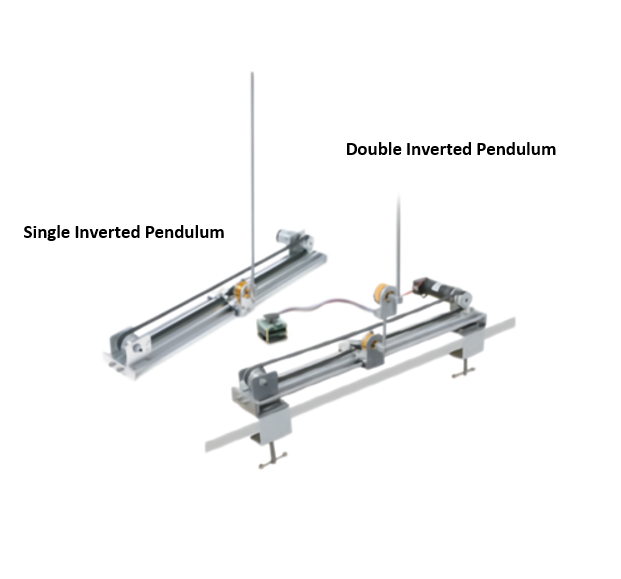

The inverted pendulum is a classic multivariable, non-linear, strongly coupled, and naturally unstable system. Its research effectively demonstrates key control challenges such as non-linearity and robustness. This product balances performance and cost through hardware optimization and complete dynamical analysis using PID/LQR algorithms.
|
Specification |
Standard 2nd-Stage Linear |
STM32 1st-Stage Linear |
STM32 1st-Stage Rotary |
|
Model |
IP870 |
IP570 |
IP570 |
|
Dimensions |
585460170mm (incl. pendulum) |
560136328mm (incl. pendulum) |
6363297mm |
|
Weight |
3.3kg (incl. pendulum) |
2.4kg (incl. pendulum) |
1.9kg |
|
Main Control Chip |
STM32F103RCT6 |
STM32F103C8T6 |
STM32F103C8T6 |
|
Motor Model |
MD36L_P5.18 |
MG513 |
Long-shaft MG513 |
|
Encoder Specs |
500-line AB-phase GMR |
Hall Encoder |
Hall Encoder |
|
Slider Travel |
395mm |
395mm |
--- |
|
Fixed Base |
2 Units |
2 Units |
1 Unit |
|
Limit Switch |
1 Unit |
None |
None |
|
Emergency Stop |
1 Unit |
None |
None |
|
Display |
0.96-inch OLED |
0.96-inch OLED |
0.96-inch OLED |
|
Download Port |
Type-C Serial (One-click); SWD reserved |
Type-C Serial (One-click); SWD reserved |
Type-C Serial (One-click); SWD reserved |
|
Control Algorithm |
LQR |
PID / LQR |
PID / LQR |
|
Core Protection |
Reverse polarity, overcurrent, short circuit, stall, and ESD protection |
Reverse polarity, overcurrent, short circuit, stall, and ESD protection |
Reverse polarity, overcurrent, short circuit, stall, and ESD protection |
Fully Open Source & Secondary Development: As an underactuated control product with complex hardware/software, we have invested significant R&D into this platform. The code is fully open-source, allowing users to quickly start secondary development for underactuated or intelligent control projects.
PID & Model-based LQR Algorithms: We provide two different algorithm implementations for stable control, accompanied by detailed tutorials to guide users from theory to practice.
Note: The 2nd-stage inverted pendulum only supports the LQR algorithm.
