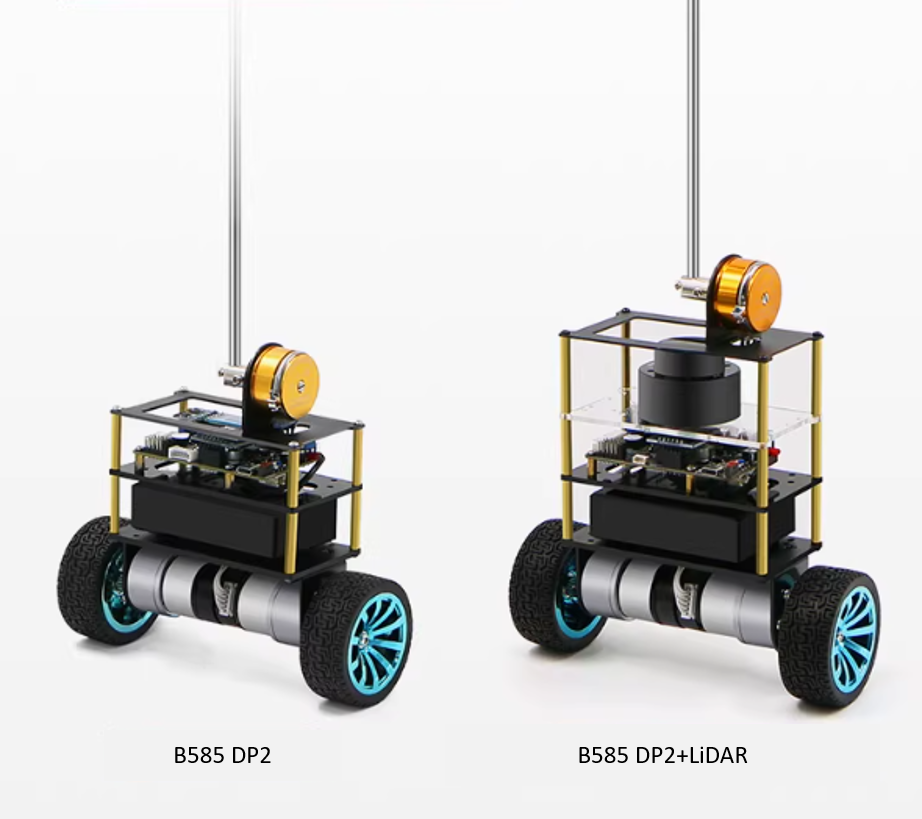

2nd-order Balancing Robot-B585 DP2
2nd-order Balancing Robot-B585 DP2

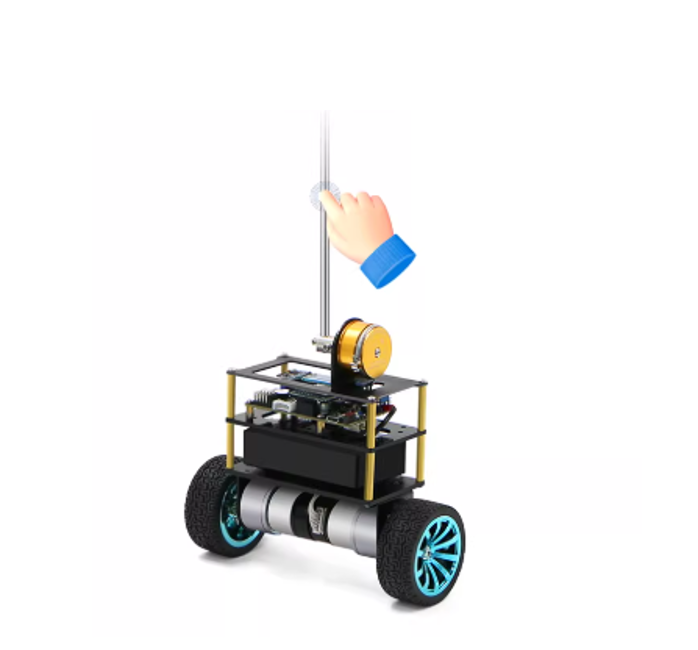

Product Overview
The 2nd-order Balancing Robot is a complex, high-order, multivariable, non-linear, and strongly coupled system that is inherently unstable.
Based on Lagrangian mechanics, this product undergoes rigorous dynamical modeling to derive the system's state-space equations. Stable control of the robot is then successfully achieved through the LQR (Linear Quadratic Regulator) algorithm. This product is fully open-source.
|
Model |
B585 DP2 |
|
Dimensions |
184 × 65 × 541.5 mm (including swing rod) |
|
Weight |
1.1 kg (including swing rod) |
|
Motor |
MG513 Metal Gear Reduction Motor |
|
Encoder |
500-line AB-phase High-Precision GMR Encoder |
|
Wheels |
65 mm Blue Rubber Wheels |
|
Maximum Load Capacity |
3 kg |
|
Self-Balancing Duration |
20 hours |
|
Chassis Structure |
Full Metal Construction |
|
Battery |
E326S Battery (2550 mAh) |
|
Charger |
Protected Lithium Battery Charger |
|
OLED Display |
○ |
|
Angle Sensor |
○ |
|
Simulink Simulation |
Supported |
|
Control Algorithm |
LQR |
LiDAR Specification
|
Specification |
N10P |
|
Detection Radius |
25m |
|
Scanning Frequency |
6 ~ 12Hz (Adjustable) |
|
Sampling Rate |
5400Hz |
|
Output Data |
Angle, Distance, Intensity |
|
Angular Resolution |
0.4° ~ 0.8° (Adjustable) |
|
Ambient Light Resistance |
60KLux (Outdoor use supported) |
|
Interface Type |
Serial Port |
|
Drive Motor Type |
Brushless Motor |
|
360°Scanning Range |
○ |
|
LiDAR Principle |
TOF (Time of Flight) |
